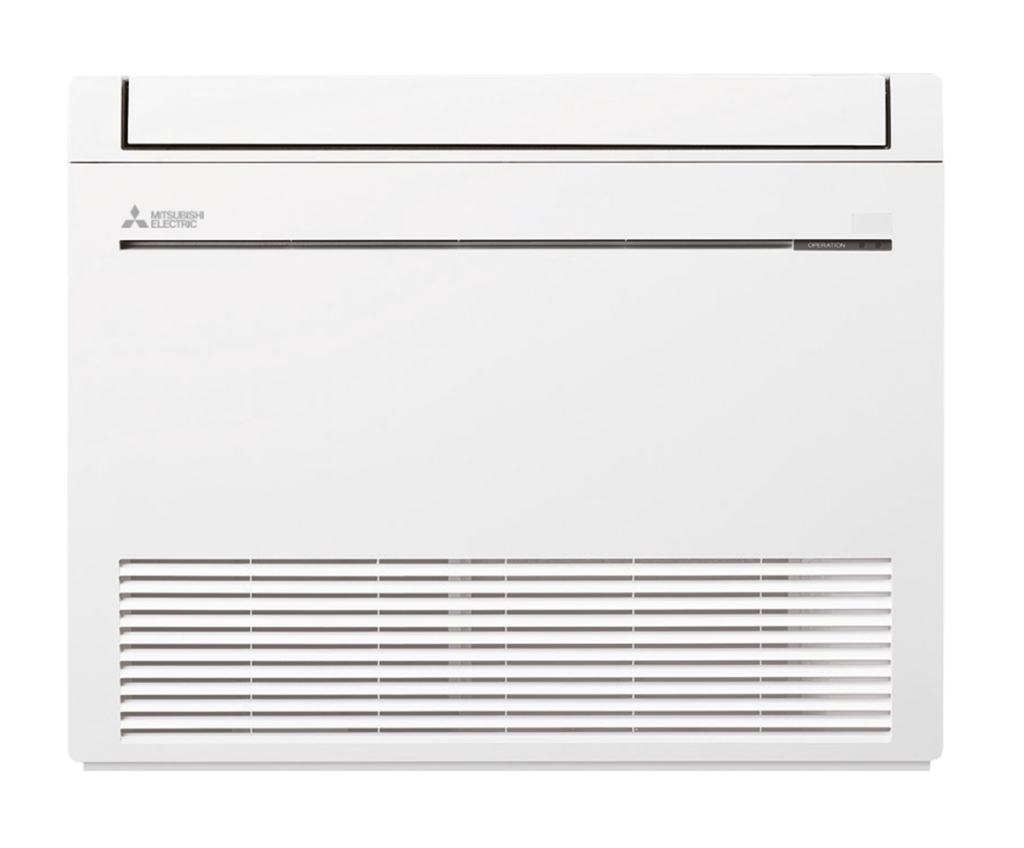

MFZ-KW HH

Floor-standing units

MFZ-KW HH

Wi-fi as standard

Wi-fi as standard

The built-in Wi-Fi module gives you the ability to directly control the MFZ-KW HH series air conditioners using a dedicated app for smartphones and tablets or via a computer.

Low-heating set point

Low-heating set point

The lowest temperature that can be set in heating mode is 10 ℃. This allows for economical operation in unused rooms. In addition, it prevents the room from getting severely cold.

100% heating capacity down to -15°C

100% heating capacity down to -15°C

Guaranteed operating range up to -25°C of heating power

Guaranteed operating range up to -25°C of heating power

Simple, slim design

Simple, slim design

The MFZ-KW HH floor mounted unit is distinguished by its modern and simple design, which optimally blends in with interiors of different decor. Small dimensions result in flexibility of installation, which allows the units to be discreetly integrated into the room.

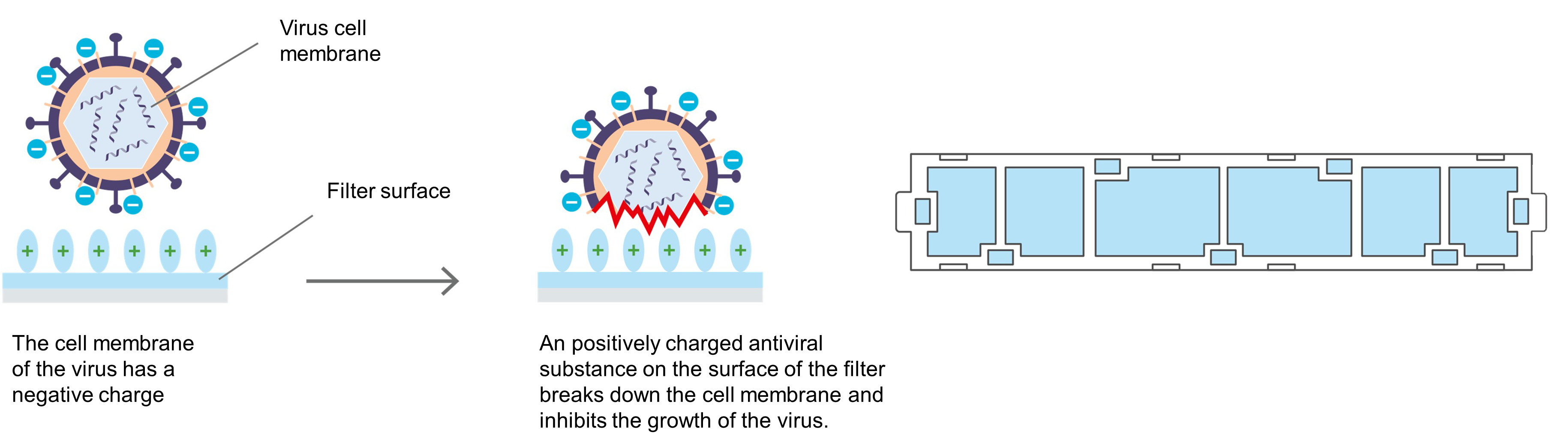

V-Blocking filter

V-Blocking filter

The V-Blocking filter stops 99% of adhering viruses and other harmful substances such as bacteria, mold and allergens. The two-layer filter with non-woven filter fabric and electrostatic filter ensures effective removal of small particles from the air.

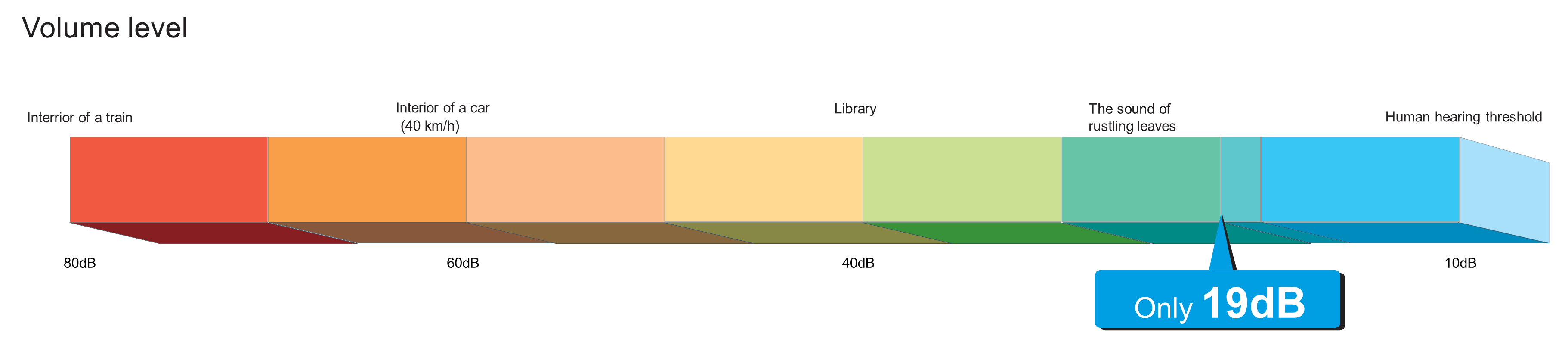

Quiet operation

Quiet operation

Mitsubishi Electric’s advanced Silent Mode fan speed setting ensures super quiet operation of just 19 dB for cooling mode for MSZ-LN models.

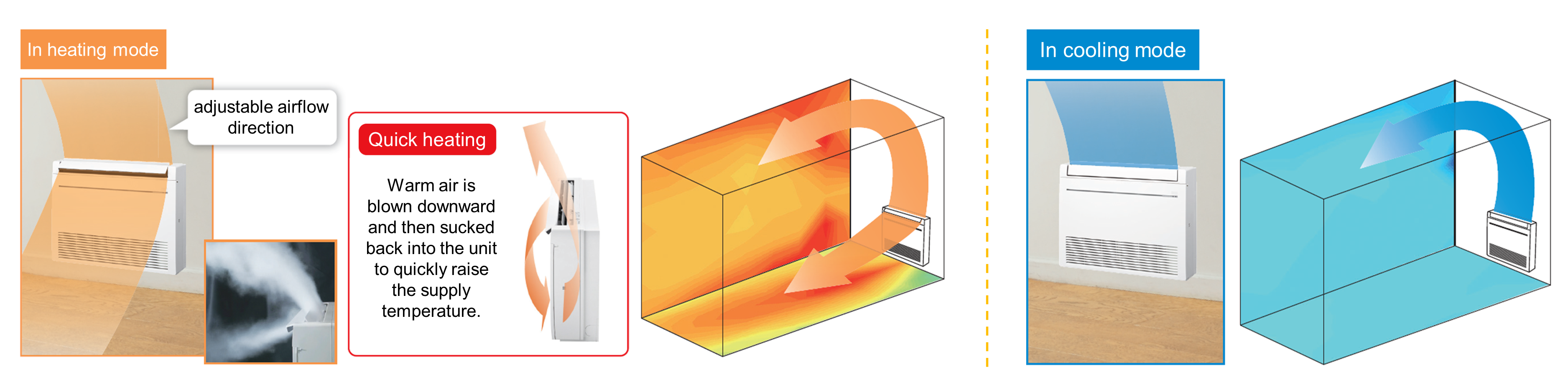

Multi-Flow Vane function

Multi-Flow Vane function

Three separate vanes control the airflow and allow you the freedom to adjust the airflow according to your preferences.

WiFi MELCloud

The unit can be equipped with a Wi-Fi adapter and controlled remotely via smartphone, tablet or PC using the control software MELCloud.

wifi

Wired Remote Control connectable (optional)

The unit can be equipped with a cable remote controller.

pilot

Econo Cool

Przyczynia się do oszczędzania energii poprzez automatyczne podniesienie zadanej temperatury o 2 °C w trybie chłodzenia. Zmniejszona moc chłodzenia nie jest odczuwana dzięki specjalnemu programowi wentylatora.

econo-cool

Weekly Timer

The weekly timer can configure up to four individual switching points for each day, enabling flexible switch-on and switch-off of the unit. A temperature specification can also be provided for each switching point to ensure demand-oriented and energy-saving control.

tygodniowy

I-save

The I SAVE function can be used to save the preferred operating mode. This operating mode can then be accessed by pressing the I-save key.

i-save

Silent

Silent mode for particularly low levels of operating noise, e.g. during the night.

silent

ON/OF

The on/off timer can be used to configure fixed switch-on and switch-off times.

on-off

Low-heating Set Point

The minimum temperature that can be configured in heating mode is 10 °C. This ensures economical operation in unused rooms and prevents excess cool-down.

ochrona-przed-wyziebieniem

Vertical Swing

The air outlet flap moves up and down, thereby ensuring pleasant distribution of the conditioned air throughout all areas of the room

pionowy

Auto Swing

Ensures the optimum air volume depending on the output requirements. If a high output is required shortly after switchon, the unit automatically switches to a high stage. The air volume is automatically reduced once the desired temperature is reached.

auto

Standard Filter Coated

Filters coarse dust (>800 µm) from room air and prevents contamination of the heat exchanger. The silver ion coating enables the filter to reliably eliminate odours while separating bacteria and mould from the room air.

standard-filter

V-Blocking Filter

The anti-viral V-Blocking filter stops adhering viruses and other harmful substances, such as bacteria, mold and allergens. The two-layer filter with non-woven filter and electrostatic surface ensures filtration of small particles from the air in the room.

v-blocking-filter2

Low-temperature Cooling

The integrated winter regulation enables cooling mode even at low outside temperatures. The outdoor unit fan speed is automatically reduced in order to maintain stable condensation pressure. If the outdoor unit is exposed to strong winds, then a wind protection panel is required.

low-temperature-cooling

Low-temperature Heating

The heat pump function enables energy-saving heating of the rooms. High efficiency even at low temperatures leads to low energy consumption, and conventional heating systems can be replaced with heat pumps in many cases.

low-temperature-heating

VRF LEV-Kit

Makes it possible to connect M-series indoor units to City Multi VRF systems. The LEV kit provides the external electronic expansion valve that indoor units need for operation with City Multi VRF systems.

VRF

Auto Restart

When the voltage is restored, the units automatically start up with the previously selected settings. This ensures a high level of operational reliability.

auto-restart

R32 Pre-charged

R32 (difluoromethane [CH2F2]) belongs to the group of HFC refrigerants and has been used as a component of R410A refrigerant for many years. Given its GWP of 675, it already meets the requirements of the F-gas Regulation for the year 2025.

r-32

Inverter

The outdoor unit is equipped with energy-saving inverter technology

inverter

Certified Quality

The German Building Air Conditioning Association (FGK) has bestowed its quality seal for room air conditioning units on the split air conditioning unit

certified

Hyper Heating

Ikonka-HH
