MSZ-LN HH

Wall-mounted units

MSZ-LN HH

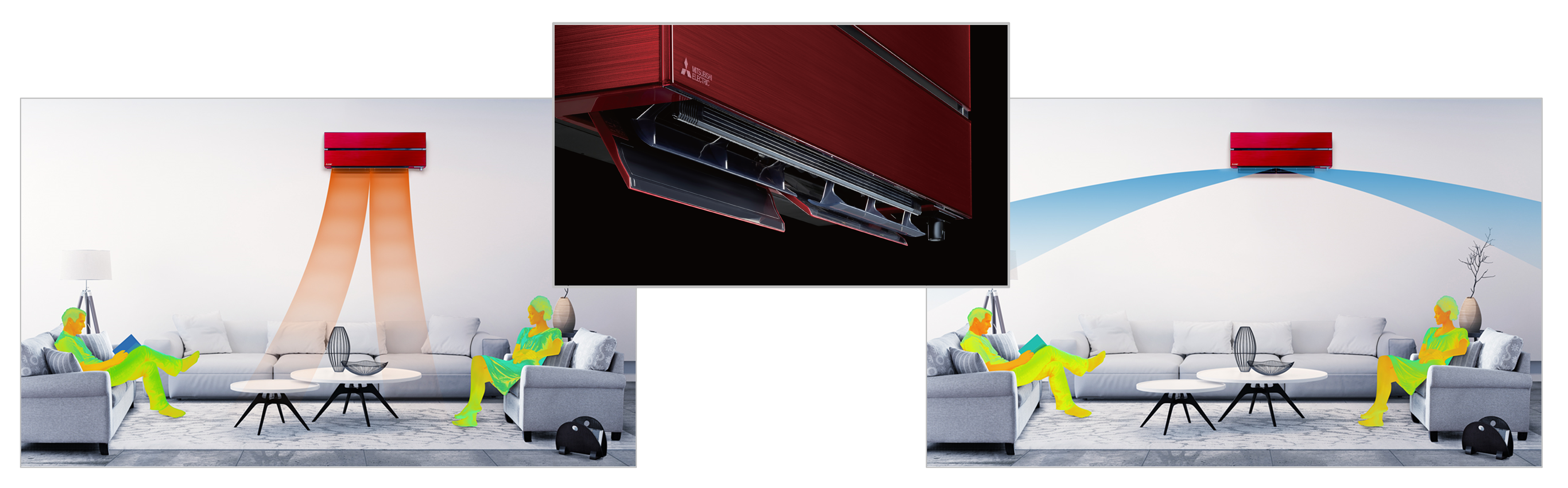

Double vane function

Two independently operating air outlet vanes ensure particularly efficient air distribution in the room

Excellent design

Whether in the public or private sector – high-quality materials and individual flair play an increasingly important role in modern interior design. With four colour variants of the Diamond wall unit, the most demanding design concepts can be realized without sacrificing high-performance and comfortable air conditioning.

SCOP do 5,2 / SEER do 10,5

Energy efficiency class up to A+++ / A+++

100% heating capacity down to -15°C

Guaranteed operating range up to -25°C of heating power

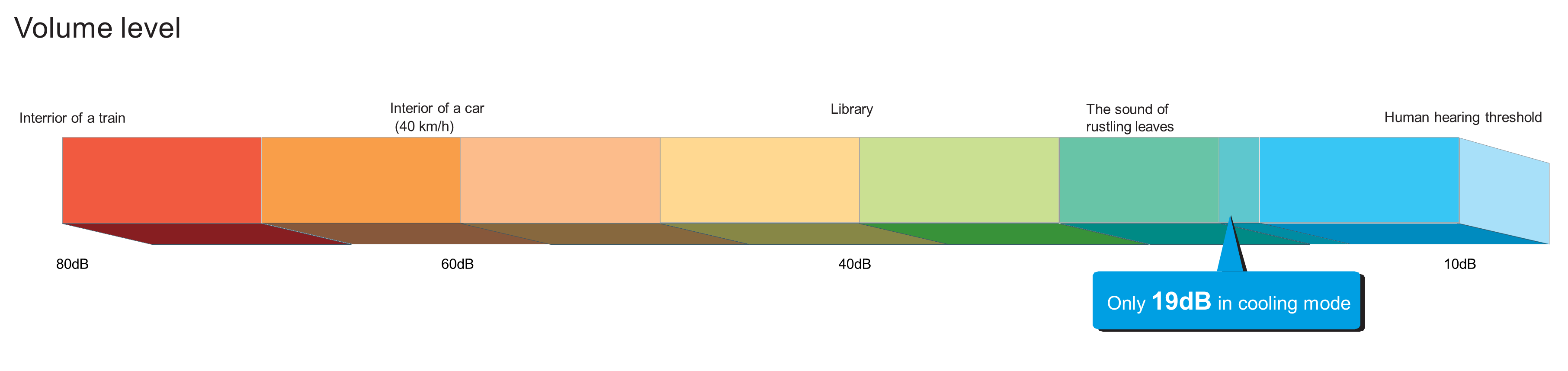

Quiet operation

Mitsubishi Electric’s advanced Silent Mode fan speed setting ensures super quiet operation of just 19 dB for cooling mode.

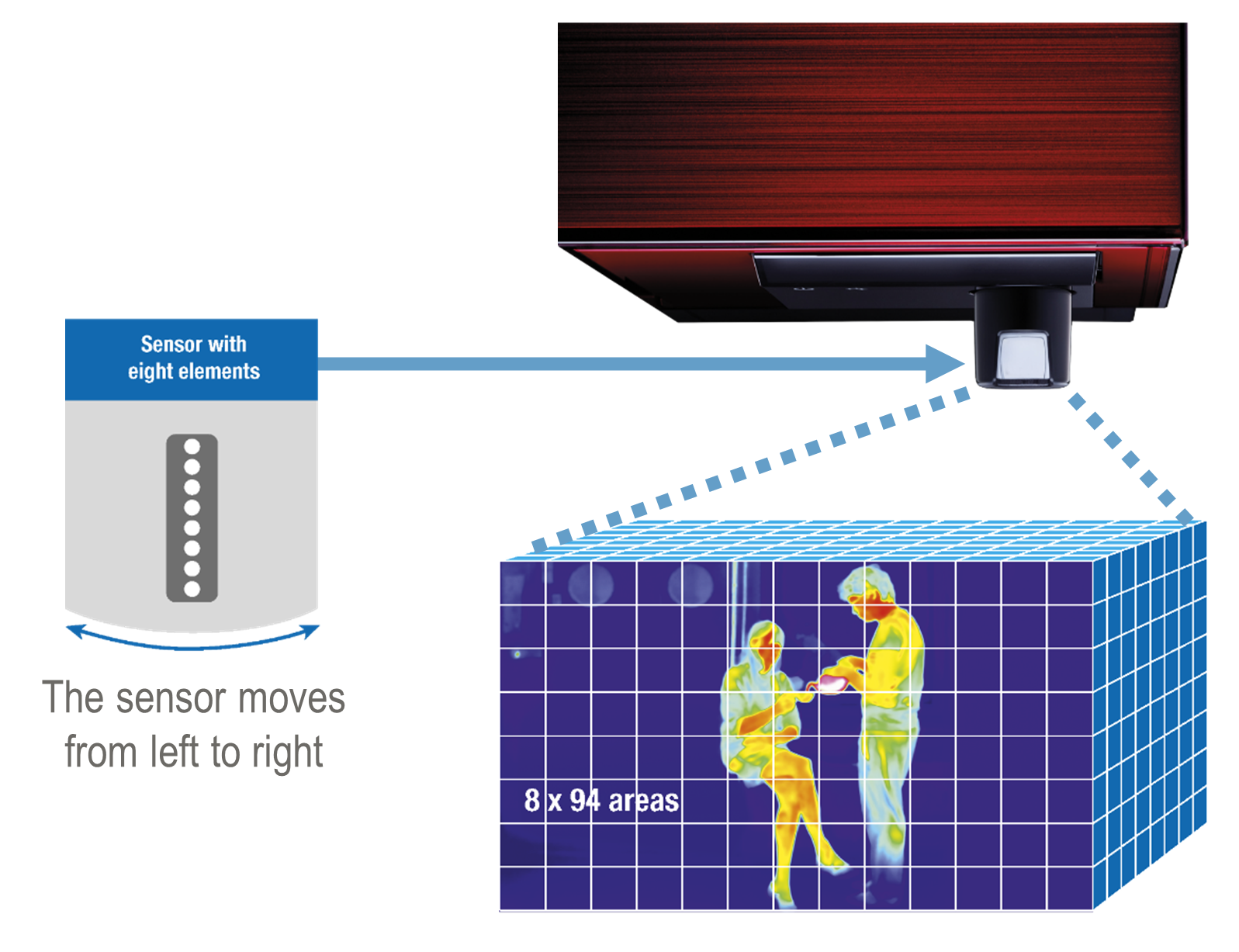

3D i-see sensor

The 3D I-see sensor measures the temperature throughout the room using eight sensors. This allows it to assess exactly where people are in the room and then allows it to automatically set the optimal airflow.

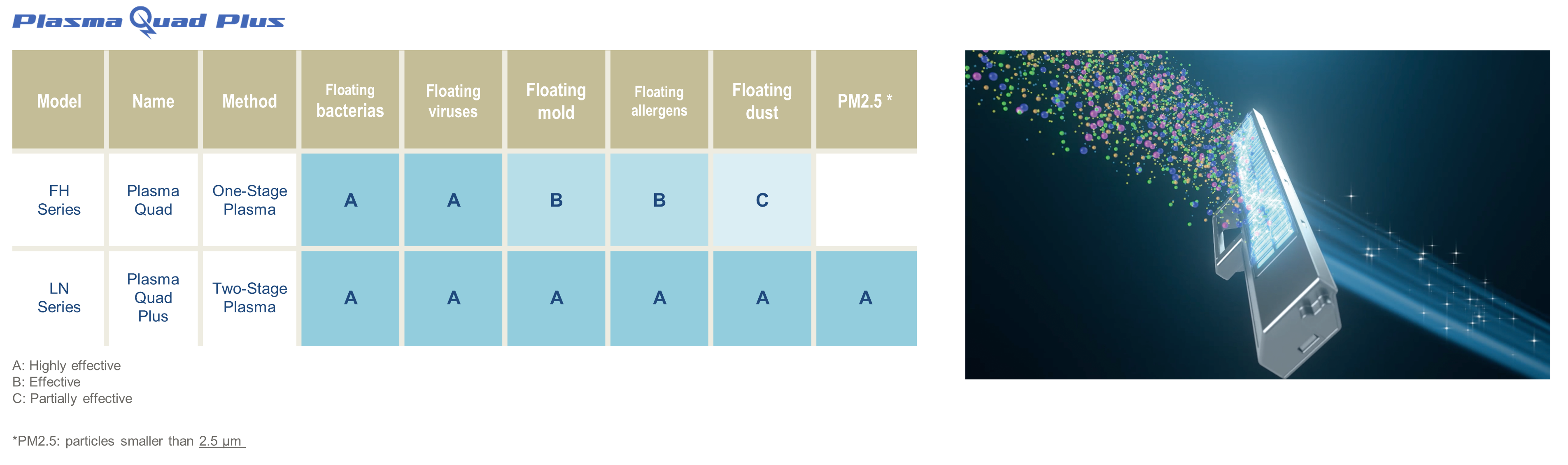

Plasma Quad Plus

A new plasma filter that effectively removes six common contaminants, including two newly added.

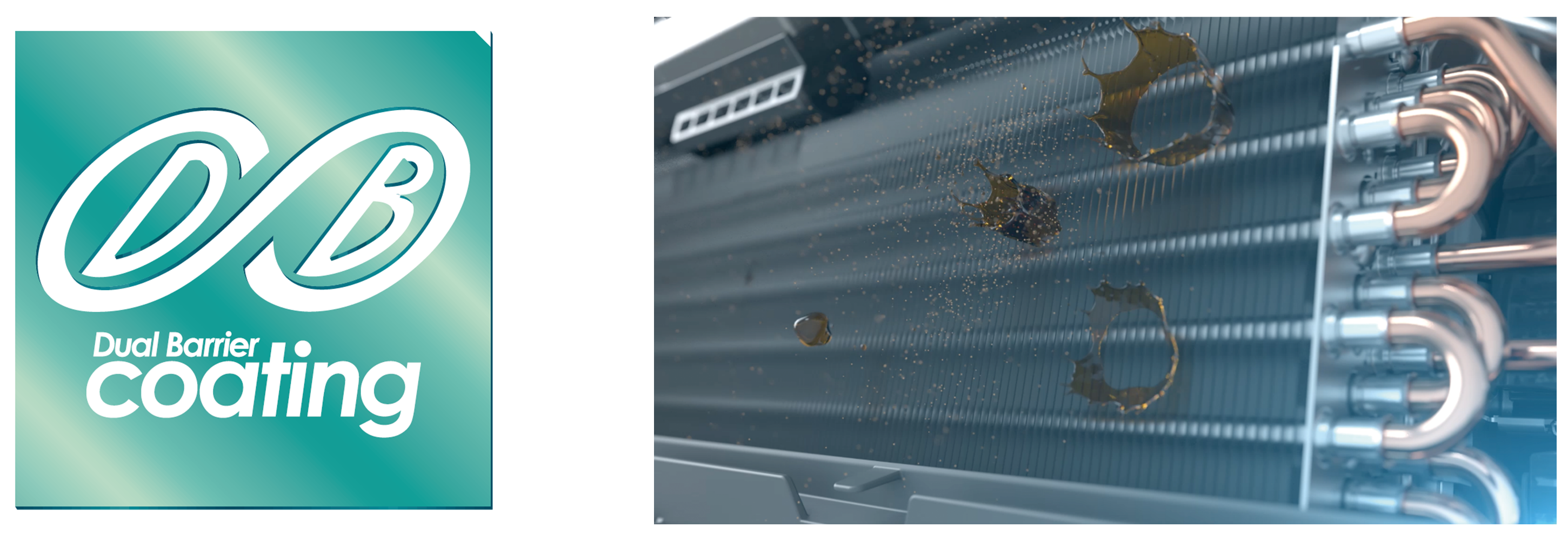

Dual Barrier Coating

Mitsubishi Electric’s Dual Barrier Coating prevents dust and greasy dirt from accumulating on the inner surface of the indoor unit; keeping your air conditioner clean. Blended “Auorine particles” prevent hydrophilic dirt penetration, and “hydrophilic particles” prevent hydrophobic dirt from getting into the air conditioner.

Dual Barrier Material

Dual Barrier Materiał performs the same antifouling effect as Dual Barrier Coating, and it is kneaded into horizontal vane and vertical vane materiał which are hard to apply coating to. Combined with Dual Barrier Coating, the whole air passage of indoor unit is kept clean all year round.

Wi-fi as standard

The built-in Wi-Fi module gives you the ability to directly control the MSZ-LN HH series air conditioners using a dedicated app for smartphones and tablets or via a computer.

3D i-see-Sensor

The 3D i-see sensor detects the position of the persons in the room, using the acquired data to direct the air flow such that this does not affect the persons present.

WiFi MELCloud

The unit can be equipped with a Wi-Fi adapter and controlled remotely via smartphone, tablet or PC using the control software MELCloud.

Wired Remote Control connectable (optional)

The unit can be equipped with a cable remote controller.

Econo Cool

Przyczynia się do oszczędzania energii poprzez automatyczne podniesienie zadanej temperatury o 2 °C w trybie chłodzenia. Zmniejszona moc chłodzenia nie jest odczuwana dzięki specjalnemu programowi wentylatora.

Weekly Timer

The weekly timer can configure up to four individual switching points for each day, enabling flexible switch-on and switch-off of the unit. A temperature specification can also be provided for each switching point to ensure demand-oriented and energy-saving control.

I-save

The I SAVE function can be used to save the preferred operating mode. This operating mode can then be accessed by pressing the I-save key.

Silent

Silent mode for particularly low levels of operating noise, e.g. during the night.

ON/OF

The on/off timer can be used to configure fixed switch-on and switch-off times.

Low-heating Set Point

The minimum temperature that can be configured in heating mode is 10 °C. This ensures economical operation in unused rooms and prevents excess cool-down.

Night Mode

The new night mode comfort function automatically reduces the noise level of the outdoor unit by 3 dB(A). In addition, the LED on the indoor unit is dimmed and the remote controller mutes the beep tone during operation.

Horizontal Swing

The air outlet flap swings right and left, thereby ensuring a supply of conditioned air even in larger rooms.

Vertical Swing

The air outlet flap moves up and down, thereby ensuring pleasant distribution of the conditioned air throughout all areas of the room

Auto Swing

Ensures the optimum air volume depending on the output requirements. If a high output is required shortly after switchon, the unit automatically switches to a high stage. The air volume is automatically reduced once the desired temperature is reached.

Plasma-Quad-Plus

Plasma Quad filter technology ensures highly effective air purification. Plasma ionisation and the electrostatically charged filter ensure that even the smallest particles (PM2.5; <2.5 μm) such as pollen, viruses, mould, bacteria and allergens are separated and rendered harmless.

Odor Filter

Filters coarse dust (>800 µm) from room air and prevents contamination of the heat exchanger.

Standard Filter

Filters coarse dust (>800 µm) from room air and prevents contamination of the heat exchanger.

V-Blocking Filter

The anti-viral V-Blocking filter stops adhering viruses and other harmful substances, such as bacteria, mold and allergens. The two-layer filter with non-woven filter and electrostatic surface ensures filtration of small particles from the air in the room.

Low-temperature Cooling

The integrated winter regulation enables cooling mode even at low outside temperatures. The outdoor unit fan speed is automatically reduced in order to maintain stable condensation pressure. If the outdoor unit is exposed to strong winds, then a wind protection panel is required.

Low-temperature Heating

The heat pump function enables energy-saving heating of the rooms. High efficiency even at low temperatures leads to low energy consumption, and conventional heating systems can be replaced with heat pumps in many cases.

Auto Restart

When the voltage is restored, the units automatically start up with the previously selected settings. This ensures a high level of operational reliability.

R32 Pre-charged

R32 (difluoromethane [CH2F2]) belongs to the group of HFC refrigerants and has been used as a component of R410A refrigerant for many years. Given its GWP of 675, it already meets the requirements of the F-gas Regulation for the year 2025.

VRF LEV-Kit

Makes it possible to connect M-series indoor units to City Multi VRF systems. The LEV kit provides the external electronic expansion valve that indoor units need for operation with City Multi VRF systems.

Certified Quality

The German Building Air Conditioning Association (FGK) has bestowed its quality seal for room air conditioning units on the split air conditioning unit

Inverter

The outdoor unit is equipped with energy-saving inverter technology

Reuse Piping

The inverter outdoor unit is equipped as standard with Replace technology, which enables easy reuse of existing R22 and R407C pipes.¹
¹ See our M-series design documents for information on the compatibility of existing pipe cross-sections with the new units.
